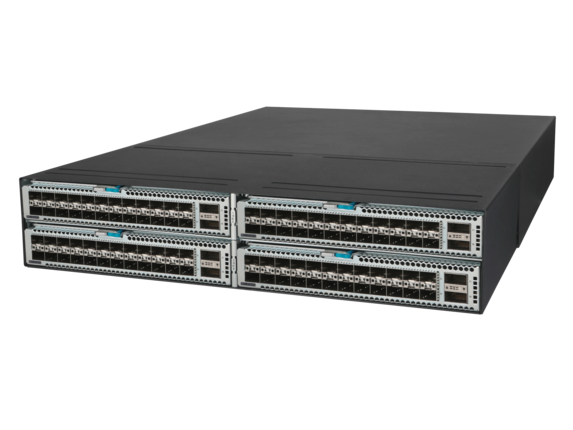

HPE FlexFabric 5945 4-slot Switch

HPE FlexFabric 5945 4-slot Switch

HPE FlexFabric 5945 4-slot Switch

JQ076A

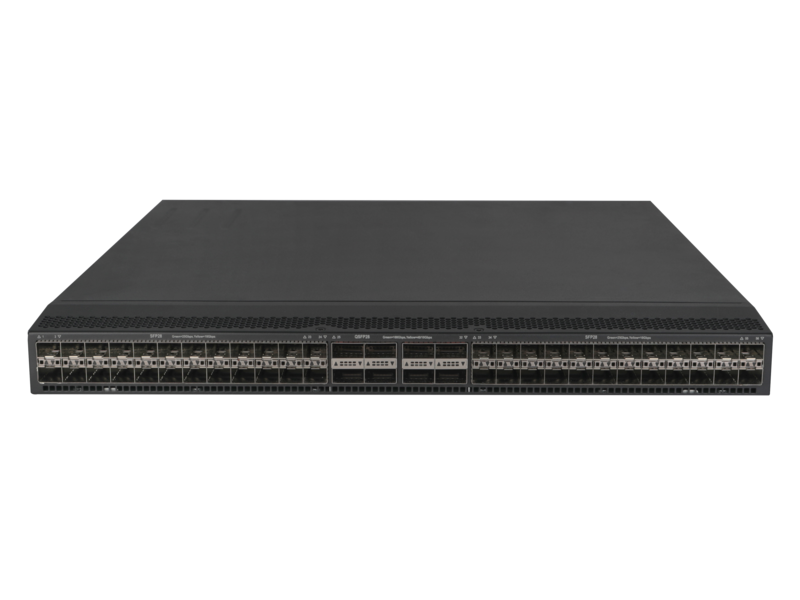

HPE FlexFabric 5945 48SFP28 8QSFP28 Switch

HPE FlexFabric 5945 48SFP28 8QSFP28 Switch

HPE FlexFabric 5945 48SFP28 8QSFP28 Switch

JQ074A


  • High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity.
  • HPE FlexFabric Network Analytics solution supporting real time microburst detection.
  • VXLAN, VTEP, and OVSDB support for virtualized environments.
  • Cut-through switching with ultra-low-latency and wire speed performance.
  • IPv6 support with full Layer 2 and Layer 3 features.

High-density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics

The HPE FlexFabric 5945 Switch Series enables customers to scale their server-edge 10/40/100GbE top-of-rack (ToR) deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, and 32 x 40GbE ports, delivered in a 1RU design.

Available with a 2-slot modular version delivering two 40GbE ports and a 4-slot modular version with four 40GbE ports.

Includes HPE FlexFabric Network Analytics, which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager, delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.

High-performance Data Center Switching

The HPE FlexFabric 5945 Switch Series delivers up to 2.56 Tbps switching capacity for demanding data center applications.

Supports up to 1904 MPPS throughput for data-intensive environments.

Low latency, under 1µs for 40GbE, delivering increased network throughput.

VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.

Business Agility and Resilience with Hewlett Packard Enterprise Comware 7

The HPE FlexFabric 5945 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) with <50 msec convergence time enabling faster application response time.

The In-Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

HPE FlexFabric 5945 Switch Series simplifies switch management by up to 88% with 9-unit Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF).

No hidden costs with simple one license per switch for all operating system features.

All switch ports are active and ready to use without the need for activation licenses.

  • Power Consumption Description 650W maximum
  • Input Voltage 100 VAC to 240 VAC, or –40 VDC to –60 VDC, depending on installed power supplies
  • External I/O Ports 48 x 25 Gb SFP28, 8 x 100 Gb QSFP28, and 2 x 1 Gb SFP ports or 4 module slots and 2 x 1 Gb SFP ports, supporting up to a maximum of 96 x 10/25GbE and 8 x 100GbE ports, or up to 32 x 100GbE ports
  • Latency < 1 µs (64-byte packets)
  • Routing/switching Capacity 6.4 Tbps, maximum, depending on model and configuration
  • Stacking Capabilities up to 10 HPE 5945 switches
  • Throughput up to 2003.4 Mpps
  • Memory and Processor 1 GB flash Packet buffer size: 16 MB, 4 GB SDRAM
  • Management Features IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP
  • Warranty Standard Statement 1-year warranty
