Arista 7050 96SFP+ 8QSFP+ Back-to-Front AC Switch

Arista 7050 96SFP+ 8QSFP+ Back-to-Front AC Switch

Arista 7050 96SFP+ 8QSFP+ Back-to-Front AC Switch

JH782A


Arista 7050 96SFP+ 8QSFP+ Front-to-Back AC Switch

Arista 7050 96SFP+ 8QSFP+ Front-to-Back AC Switch

Arista 7050 96SFP+ 8QSFP+ Front-to-Back AC Switch

JH781A


Arista 7050X 48SFP+ 4QSFP+ Back-to-Front AC Switch

Arista 7050X 48SFP+ 4QSFP+ Back-to-Front AC Switch

Arista 7050X 48SFP+ 4QSFP+ Back-to-Front AC Switch

JH582A


Arista 7050X 48SFP+ 4QSFP+ Front-to-Back AC Switch

Arista 7050X 48SFP+ 4QSFP+ Front-to-Back AC Switch

Arista 7050X 48SFP+ 4QSFP+ Front-to-Back AC Switch

JH581A


Arista 7050X 48SFP+ 4QSFP+ Front-to-Back DC Switch

Arista 7050X 48SFP+ 4QSFP+ Front-to-Back DC Switch

Arista 7050X 48SFP+ 4QSFP+ Front-to-Back DC Switch

JQ397A


Arista 7050X 48SFP+ 6QSFP+ Back-to-Front AC Switch

Arista 7050X 48SFP+ 6QSFP+ Back-to-Front AC Switch

Arista 7050X 48SFP+ 6QSFP+ Back-to-Front AC Switch

JH586A


Arista 7050X 48SFP+ 6QSFP+ Front-to-Back AC Switch

Arista 7050X 48SFP+ 6QSFP+ Front-to-Back AC Switch

Arista 7050X 48SFP+ 6QSFP+ Front-to-Back AC Switch

JH585A


Arista 7050X2 48SFP+ 6QSFP+ Back-to-Front AC Switch

Arista 7050X2 48SFP+ 6QSFP+ Back-to-Front AC Switch

Arista 7050X2 48SFP+ 6QSFP+ Back-to-Front AC Switch

JH943A


Arista 7050X2 48SFP+ 6QSFP+ Front-to-Back AC Switch

Arista 7050X2 48SFP+ 6QSFP+ Front-to-Back AC Switch

Arista 7050X2 48SFP+ 6QSFP+ Front-to-Back AC Switch

JH942A


Arista 7050X2 96SFP+ 8QSFP+ Back-to-Front AC Switch

Arista 7050X2 96SFP+ 8QSFP+ Back-to-Front AC Switch

Arista 7050X2 96SFP+ 8QSFP+ Back-to-Front AC Switch

JH784A


Page 1 of 2

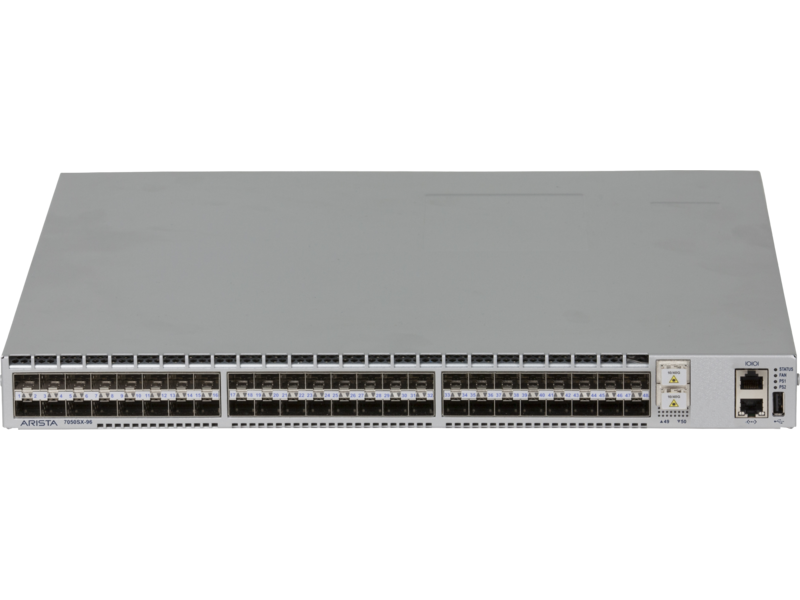

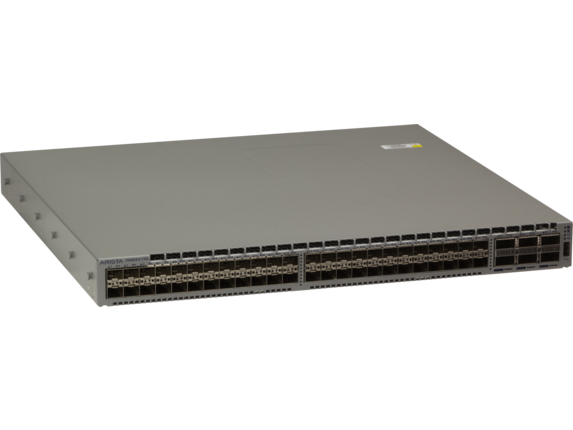

  • Combines 48-port host facing SFP+ interfaces with a choice of 10/40GbE options.
  • The QSFP+ port interfaces increase the system density up to 72-port 10GbEt or 48-port 10GbE and 6-port 40GbE. These combinations allow for design flexibility.

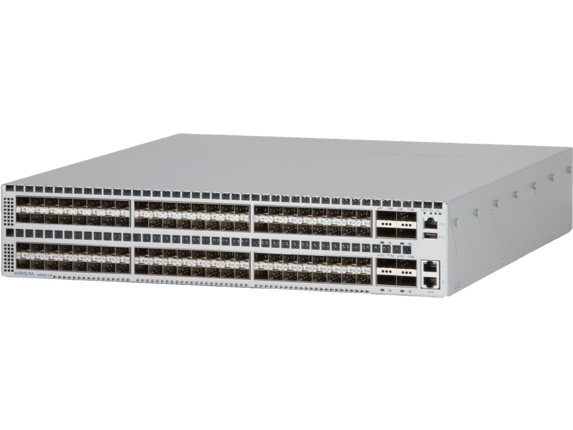

  • Offers 96-port 10GbE SFP+ and 8-port 40GbE QSFP+ interfaces in 2 RU for higher density requirements. Ideal for for top-of-rack or end-of-row with consistent performance, and high availability.
  • 7050SX2-72Q (48-port SFP+ and 6-port QSFP+) and 7050SX2-128 (96-port SFP+ and 8-port QSFP+) provides a high-density platform and delivers line rate VXLAN routing in a single pass.
  • Typical power consumption of less than 2 Watts per 10GbE port.

Scaling Data Center Performance

Arista 7050SX 10/40 Data Center Switch Series delivers line rate switching at Layer 2 and Layer 3 to enable dramatically faster and simpler network designs for data centers that dramatically lowers the network capital and operational expenses.

Featuring a choice of 1RU and 2RU models, the Arista 7050SX Series deliver high-density 1/10GbE SFP+ based ports and 10/40GbE ports using QSFP+ for flexible configurations supporting migration from 1/10GbE to 10/40GbE networks.

The flexibility of the Layer 2 and Layer 3 multi-path design options combined with support for open standards provides increased flexibility, scalability and network wide virtualization.

Scale Out Network Designs

In cut-through mode, the Arista 7050SX 10/40 Data Center Switch Series forward packets with a latency of 550 nanoseconds to 650 nanoseconds.

Upon congestion, the packets are buffered in shared packet memory that has a total size of 12 MB.

The Arista 7050X delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high-performance environments, with solutions for data monitoring and virtualization.

Arista Extensible Operating System (EOS)

Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.

Built on top of a standard Linux® kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database.

Arista EOS automates complex IT workflows and simplifies network operations while reducing downtime. It's rich automation capabilities not only reduce the human error element in network operations but also enables IT operators to make the network work the way they want.

  • Product Differentiator (long) 1RU and two 2RU models, delivering high density 1/10G SFP+ based ports and 10/40G ports using QSFP+, or embedded optics with MXP multi-speed ports for higher density. Rich L2 and L3 features with wire speed performance up to a level of 2.56 Tbps. All Arista switches run on the same Arista EOS modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.
  • Power Consumption Description 415 W maximum, depending on model
  • Input Voltage 100-240V AC, 40-72V DC, depending on model and installed power supplies
  • External I/O Ports 96 SFP+ 8 QSFP+, maximum, depending on model
  • Latency from 550 ns
  • Throughput 2.56 Tbps/1.44 Bpps, maximum, depending on model
  • Memory and Processor System memory: 8 GB Flash memory: 4 GB Packet buffer: 16 MB Maximum, depending on model
  • Management Features CloudVision 10/100/1000 Management port RS-232 Serial console port USB port SNMP v1, v2, v3 Management over IPv6 Telnet and SSHv2 Syslog AAA Industry-standard CLI Accelerated Software Upgrade (ASU)
  • Warranty Standard Statement The Arista 7050SX Series switches come with a one-year limited hardware warranty, which covers parts, repair, or replacement with a 10 business day turn-around after the unit is received.
