Arista 7324X 2x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

Arista 7324X 2x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

Arista 7324X 2x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

JH820A


Arista 7324X 2x PSU 4x Fabric Supervisor SSD Front-to-Back Bundle

Arista 7324X 2x PSU 4x Fabric Supervisor SSD Front-to-Back Bundle

Arista 7324X 2x PSU 4x Fabric Supervisor SSD Front-to-Back Bundle

JH831A


Arista 7324X 4-slot 2xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

Arista 7324X 4-slot 2xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

Arista 7324X 4-slot 2xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

JH548A


Arista 7328X 4x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

Arista 7328X 4x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

Arista 7328X 4x PSU 4x Fabric Supervisor Front-to-Back DC Bundle

JH821A


Arista 7328X 4x PSU 4x Fabric Supervisor SSD Front-to-Back AC Bundle

Arista 7328X 4x PSU 4x Fabric Supervisor SSD Front-to-Back AC Bundle

Arista 7328X 4x PSU 4x Fabric Supervisor SSD Front-to-Back AC Bundle

JH822A


Arista 7328X 8-slot 4xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

Arista 7328X 8-slot 4xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

Arista 7328X 8-slot 4xPSU 4xFabric 1xSupervisor Front-to-Back Bundle

JH547A


  • Greater than 50 Tbps of switching with up to 256 wire speed 100GbE ports.
  • Two modular systems either a 4-slot or an 8-slot.
  • Combination of interface speeds including 10GbE, 25GbE, 40GbE, and 100GbE.

High Density Modular Configuration

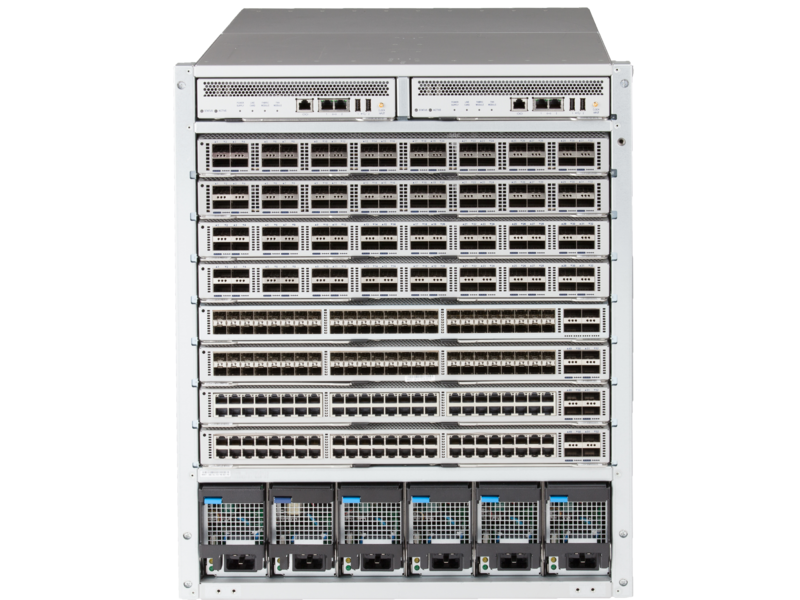

The Arista 7320X 10/25/40/50/100G Data Center Switch Series are modular switches delivering over 50 Tbps of switching with up to 256 wire speed 100GbE ports to give you scalable high performance for software defined cloud networking.

With two modular systems, either a 4-slot or an 8-slot, they support comprehensive features for network monitoring, precision timing and network virtualization.

Supports high density layer 2/3/4 wire speed performance line cards that offer a flexible combination of interface speeds including 10GbE, 25GbE, 40GbE, and 100GbE to design large leaf and spine networks for scale-out, east-west traffic patterns.

Offers power efficiency, low latency and enables seamless migration.

With front-to-rear air flow, redundant and hot swappable supervisor, power, fabric and cooling modules the system is purpose built for data centers.

Supported by Arista EOS

All Arista switches run on the same Arista EOS modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.

This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency together with stateful switchover, without the loss of data plane forwarding.

Simplifies network administration, via a modular switch operating system.

  • Product Differentiator (long) Modular switches delivering over 50Tbps of switching with up to 256 wire speed 100GbE ports. Scalable high performance for software-defined cloud networking supporting comprehensive features for network monitoring, precision timing and network virtualization. All Arista switches run on the same Arista EOS modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.
  • Power Consumption Description 6000 W, maximum, depending on model
  • Input Voltage 200 - 240V AC, -48 to - 60V DC Depending on power supply used
  • External I/O Ports (8) I/O module slots, maximum Supports a maximum of 1,024 10GbE ports or 1,024 25GbE ports or 256 40GbE ports or 256 100GbE ports, or a combination Depending on model and configuration
  • Latency <2 ┬Ás
  • Throughput up to 50 Tbps/38 Bpps Maximum, depending on model
  • Memory and Processor System memory: 16 GB Flash memory: 4 GB Packet buffer: 16 MB
  • Management Features CloudVision 10/100/1000 Management port RS-232 Serial console port USB port SNMP v1, v2, v3 Management over IPv6 Telnet and SSHv2 Syslog AAA Industry-standard CLI
  • Weight (imperial) 58 lb
  • Weight (metric) 21.8 kg
  • Product Dimensions (imperial) 1.7 x 17.2 x 35.2 in
  • Product Dimensions (metric) 4.32 x 43.69 x 89.41 cm
