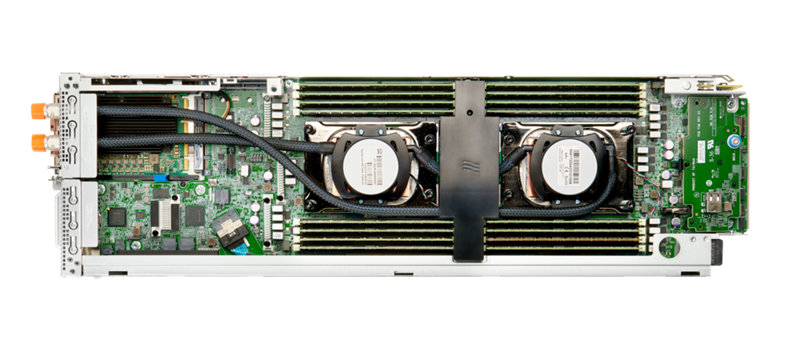

HPE ProLiant XL225n Gen10 Plus 1U Node Configure‑to‑order Server

System Performance and Improved Efficiency

The HPE Apollo 2000 Gen10 Plus System delivers four times more¹ density than 1U servers - four 1U servers in a 2U chassis.

Expanded power capability with 3000W power supplies that deliver N+N power availability.

High-speed infrastructure built on modern industry standard components provides high performance to accelerate application.

Unlock top-bin SKUs and increase your power density with a DLC system that is plug and play at your data center. The system comes pre-filled and ready to connect to facility water. DLC is fully integrated, installed and supported. Choose from either CPU only or CPU/memory cooling options.

The optional dual M.2 storage can be used for OS boot without utilizing a PCIe slot or storage bay. When paired with the HPE Apollo n2400 Gen10 Plus diskless chassis, this is an effective compute solution.

Comprehensive Server Security and Management

The HPE Apollo 2000 Gen10 Plus offers industry standard server with firmware anchored into silicon with HPE iLO 5 and Silicon Root of Trust. The AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), ties into the Silicon Root of Trust.

Secure recovery restores firmware to last known good state if code is compromised to limit system disruption.

Firmware runtime validation provides a daily firmware check and alert of compromised code so that issues are contained rather than impacting the system.

HPE Performance Cluster Manager is a fully integrated system management software offering administrators every functionality they need to manage their clusters.

Shared infrastructure enables more efficient system management.

Flexible Scale-Out Building Blocks

The HPE Apollo 2000 Gen10 Plus System allows you to scale to many servers for expanding capacity to meet evolving needs.

Provides storage and I/O flexibility to help customize for performance or economy to get to the right compute for the right workload.

Multiple storage chassis options from 0 to 24 SFF SAS/SATA drives and support for NVMe drives. A unique 24 SFF SAS zoning chassis (n2800) that allows allocations of drives to specific nodes.

Right Compute and Storage for Every Workload

The HPE Apollo 2000 Gen10 Plus Server nodes support up to 16 DIMMS per server, multiple networking options including high-speed fabrics, and two PCIe Gen4 slots.

The HPE Apollo n2400 Chassis is a drive-less option that brings efficiency. It is ideal for supporting top bin processors for those applications which don’t require storage. It supports five single rotor fans, has an integrated RCM² option, and supports up to two power supplies.

The HPE Apollo n2600 Chassis offers multiple backplane options including 0 and 8 SFF SAS/SATA/NVMe for a variety of HPC applications and 24 SFF SAS/SATA drives. Each chassis supports 5 single rotor fans, has an integrated RCM² option and supports up to two power supplies.

The HPE Apollo n2800 Chassis offers the ability to flexibly allocate the 24 SFF SAS drive among the different nodes. Each chassis supports 5 single rotor fans, has an integrated RCM² option and supports up to two power supplies.
