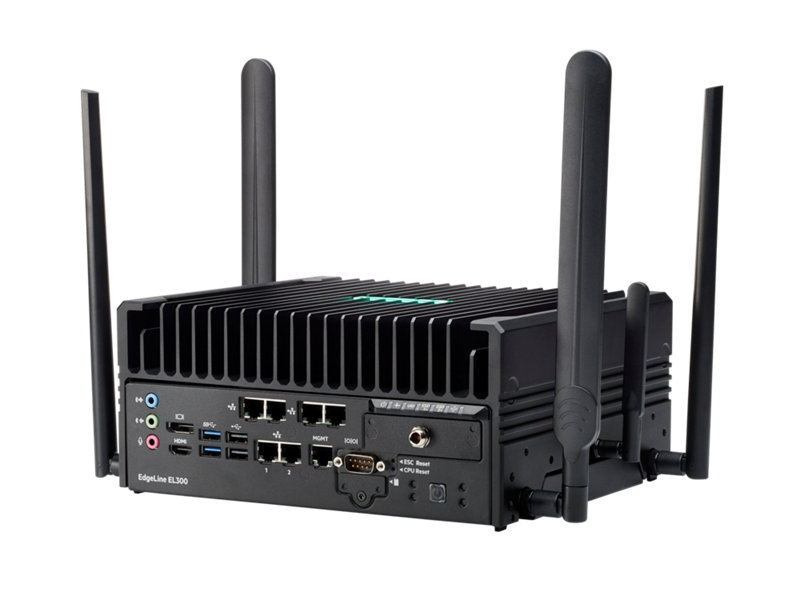

HPE Edgeline EL300 Converged Edge System
Are you looking for a converged operational technology (OT) and enterprise-class information technology (IT) in a single, ruggedized system that implements data center-level compute and management technology at the edge?
The HPE Edgeline EL300 Converged Edge System provides an effective way to connect and manage all your OT systems such as control systems, data acquisition systems and industrial networks. HPE Edgeline EL300 is a highly flexible and customizable platform that can grow as your needs evolve over time. Its modular design allows the device to incorporate IO cards for a multitude of connectivity options. This HPE Edgeline EL300 supports remote management over both wireless and wired networks. The HPE Edgeline EL300 has a ruggedized, fanless design that will withstand harsh environmental conditions with a wide operational temperature range of 0°C (32°F) to 70°C (158°F) and is ideal for embedded customer use cases.
- Updated Intel® Core™ i7 processor bringing more power for increased workloads and edge video processing.
- Vehicle ignition switch integrated in the power supply. This enables automotive development engineers to implement server compute without parasitic loads. Power down timing is customizable in iSM.
- Supports a 2x CAN Bus Daughter Card and meets CAN Bus A/B/FD standards. It is ideal for automotive environments.
- Features updated wireless connectivity options. A Sierra Wireless LTE M.2 3042 module (EM7565) can be added with dual Nano SIM support for remote connectivity.
- HPE Edgeline Infrastructure Manager (EIM) tool is now available, allowing on premise remote management at scale. The HPE EIM Standard allows basic features, while HPE EIM Advance requires a license.
- HPE Edgeline IoT Quick Connect enables industrial and manufacturing companies to easily connect equipment to generate meaningful insights needed to modernize production lines and gain efficiencies.
Improve Uptime with Edge System Management Using HPE Edgeline Integrated System Manager (iSM)
HPE Edgeline EL300 Converged Edge System with HPE Edgeline iSM allows for increased uptime and system administrator efficiency in an edge-focused management software tool. Remotely monitor system health, event logs, and thermal characteristics as well as support firmware and flash updates.
HPE Edgeline iSM remote management of HPE EL300 can be accomplished over multiple types of networks including wired Ethernet, Wi-Fi, and cellular with constant and intermittent connectivity. Remote management over wireless (LTE, etc.) allows the HPE Edgeline EL300 to be deployed nearly anywhere.
The HPE Edgeline EL300 with iSM is Redfish compliant and supports SSH CLI and web GUI interfaces for greater ease of use.
OTLink Dramatically Simplifies Deployment and Management of Operational Technologies
HPE Edgeline EL300 Converged Edge System features HPE Edgeline OTLink software-defined intelligence for fast, simple, and reliable OT+IT application deployment. Deploy converged OT+IT infrastructure with one touch provisioning quickly and efficiently.
HPE Edgeline OTLink provides a simple way to orchestrate OT+IT applications on edge-focused infrastructure in just a few clicks. Enable and manage OTLink based applications effortlessly as needed.
Protect Converged OT+IT systems with integrated security and enterprise-class reliability.
The HPE Edgeline IoT Quick Connect Guide includes all of the instructions you need to quickly and easily connect industrial devices at the edge and bring the data into the cloud.
Environmental, Mechanical, and Wireless Certifications
The HPE Edgeline EL300 Converged Edge System is designed to reside in environmentally harsh, space-constrained, and/or dusty environments. This ruggedized system is rated to MIL-STD-810G shock and vibration specifications to facilitate reliability and dependability.
The HPE Edgeline EL300 can be deployed in wide array of environmental conditions including extreme temperatures. The system can tolerate a low operating temperature of 0°C (32°F) to a high operating temperature of up to 70°C (158°F).
A Fan-less IP50 design minimizes dust and debris intrusion in dirty environments such as factories or trucks.
Global wireless LTE module supports common carrier frequencies worldwide and is certified in numerous countries. The HPE Edgeline EL300 has dual SIM slots to allow easy switching between telecom operators. A combination Wi-Fi+BT wireless option is also available.
Multi-System Management for Improved Efficiency with HPE Edgeline Infrastructure Manger (EIM)
The HPE Edgeline EL300 Converged Edge System features the HPE EIM, delivered as a virtual appliance which supports automated device discovery for fast setup and deployment.
HPE EIM sends health monitoring and alerts to resolve problems quickly.
The system supports one-click firmware and software updates at scale.
Increase Ease of use with SSH, CLI, and web GUI interfaces that are Redfish compliant.
Redfish is a registered trademark of Distributed Management Task Force, Inc. Intel Core i5 is a trademark of Intel Corporation in the U.S. and other countries. SD is a trademark or registered trademark of SD-3C in the United States and other countries or both. Sierra Wireless is a registered trademark of Sierra Wireless S.A. in the U.S. and other countries. All third-party marks are property of their respective owners.
